Galvanizing Various Steel Parts with Hot Dip Galvanizing Furnace Equipment

Product Details:
Place of Origin: CHINA
Brand Name: BEIHAI GALVANIZING
Model Number: BH001
  • Detail Information
  • Product Description

Detail Information

Equipment: Hot Dip Galvanizing Furnace Kettle Design: Customized
Workpiece: Tools And Standard Parts Usage: Galvanizing Steel Parts
Company Type: Manufacturing Customized Service: Yes
Furnace Design: Customized Burner: High Velocity Pulse Fired Burner

Product Description

Product Description:

Our high-performance hot-dip galvanizing furnace kiln typically consists of the following key components:

  •

Zinc Kettle (Galvanizing Bath):

    • The central vessel containing molten zinc
    • Constructed from special low-creep steel for high-temperature strength and zinc resistance.
    • Features robust reinforcement structures (side bracings, base supports) to prevent deformation under thermal stress and zinc bath weight.
  •

Furnace Chamber / Combustion System:

    • Houses the zinc kettle and provides controlled heating.

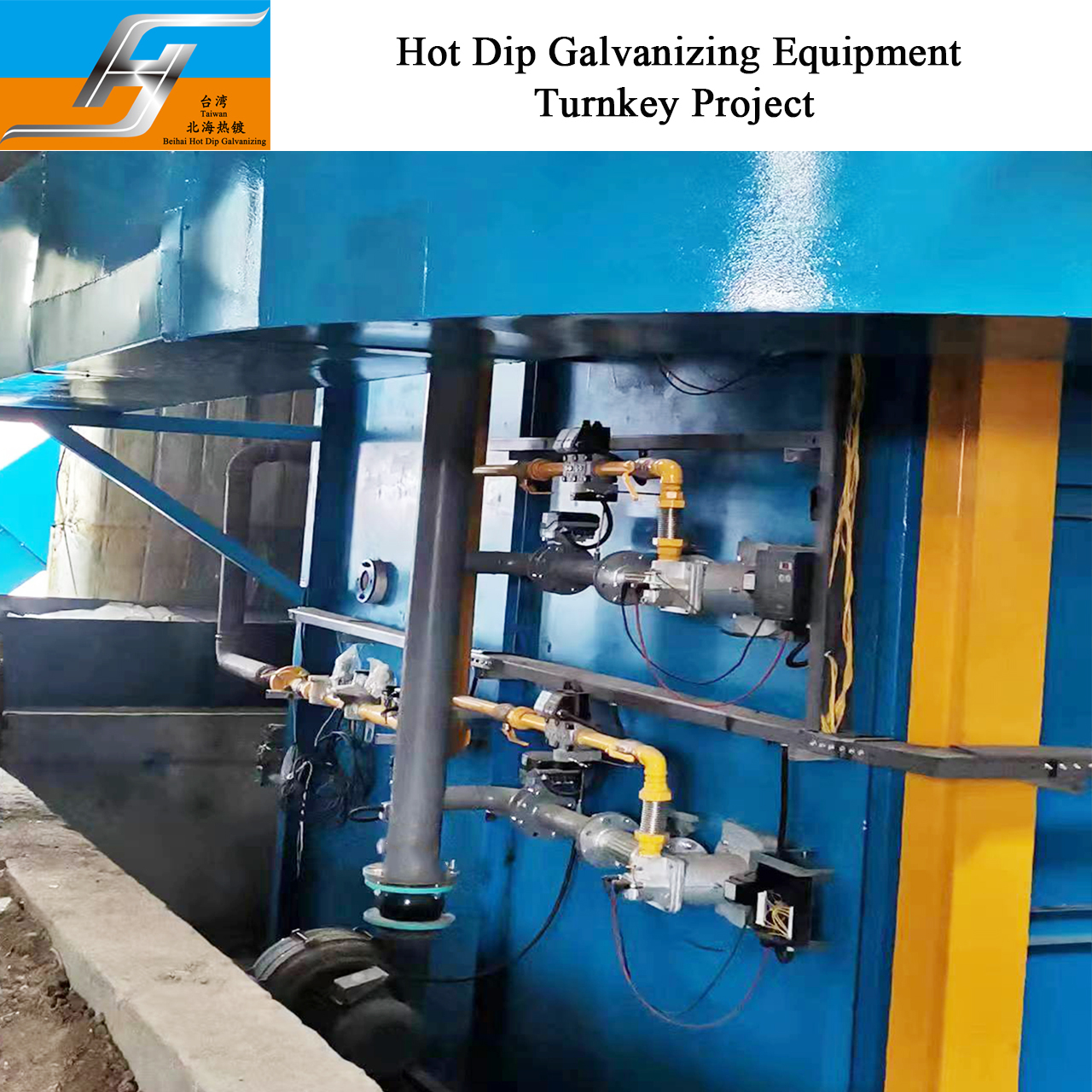

    • Burners:‌ High-velocity burners (often regenerative or recuperative type) strategically positioned (side-fired, end-fired, or U-flame configuration) to ensure uniform heat distribution around the kettle. Fuel options include natural gas, propane, or diesel.
    • Combustion Air System:‌ High-pressure blowers supply preheated combustion air (often via heat recovery systems).
    • Refractory Lining:‌ High-quality insulating firebricks (e.g., ceramic fiber modules, low-thermal-mass castables) minimize heat loss and protect the steel structure. Designed with optimized thickness and layers for thermal efficiency.
  •

Flue System & Heat Recovery Unit:

    • Exhaust Flues:‌ Channels hot combustion gases away from the combustion chamber.
    • Heat Recovery System (HRS):‌ Crucial for efficiency. Captures waste heat from exhaust gases (typically 400-600°C) to preheat combustion air (Recuperators) or incoming workpieces/pre-flux tanks. Common types include:
      • Recuperators: Shell-and-tube or plate heat exchangers transferring heat from flue gas to combustion air.
      • Regenerators: Paired chambers with ceramic media alternately storing heat from exhaust and releasing it to combustion air.
    • Exhaust Stack:‌ Releases cooled flue gases after heat recovery.
  •

Temperature Control System:

    • Thermocouples:‌ Strategically placed (zinc kettle, kettle walls, flue gases) to monitor temperatures.
    • Programmable Logic Controller (PLC):‌ The central control unit receiving temperature inputs.
    • Burner Management System (BMS):‌ Precisely modulates burner firing rate and air/fuel ratio based on PLC commands to maintain tight bath temperature tolerances.
    • Safety Interlocks:‌ Prevent unsafe operating conditions.
  •

Kettle Support Structure & Foundation:

    • Heavy-duty steel framework designed to support the immense weight of the zinc kettle (filled with molten zinc).
    • Incorporates flexible or sliding supports to accommodate thermal expansion.
    • Robust concrete foundation capable of handling static and dynamic loads, often incorporating cooling channels.



Safety & Monitoring Systems:

    • Kettle Leak Detection:‌ Sensors (e.g., thermocouples in the pot base insulation) to alarm upon molten zinc leakage.
    • Level Sensors:‌ Monitor molten zinc level.
    • Gas Detection:‌ Alarms for combustible/protective gases.
    • Emergency Stop Systems:‌ Rapid shutdown capability.
  •

Material Handling Interfaces:

    • Integration points for cranes, conveyors, or automated handling systems to immerse and withdraw steelwork from the kettle.

In essence,‌ the furnace kiln integrates combustion, heat transfer, structural support, precise control, and safety systems around the core zinc kettle, optimized for efficient, uniform, and reliable heating of the molten zinc kettle.



Applications:

- The Hot Dip Galvanizing Furnace by BEIHAI GALVANIZING from CHINA is a top-of-the-line equipment designed for galvanizing various steel parts, specifically tools and standard parts. This furnace offers customized services, ensuring that the furnace design meets the specific requirements of the customer.

- One of the key features of this furnace is its high efficiency, which is achieved through the use of a high-velocity pulse-fired burner. This burner technology allows for quick and uniform heating of the workpiece, resulting in a faster galvanizing process and ultimately leading to higher productivity.

- Whether you are in the manufacturing industry or involved in steel fabrication, the Hot Dip Galvanizing Furnace is ideal for a wide range of applications occasions. It is perfect for galvanizing tools and standard parts used in various industries.

- Customers can also benefit from the galvanizing know-how support provided by BEIHAI GALVANIZING, ensuring that they get the most out of their furnace and achieve the best possible galvanizing results.

- In summary, the Hot Dip Galvanizing Furnace by BEIHAI GALVANIZING is a versatile and efficient equipment that is perfect for galvanizing various steel parts. With its high velocity pulse fired burner, customizable design, and galvanizing know-how support, this furnace is a valuable addition to any manufacturing or steel fabrication operation.



Support and Services:

Our Product Technical Support and Services for the Hot Dip Galvanizing Furnace include:

- Installation guidance and supervision to ensure proper setup and functioning of the furnace.

- On-site training for operators to familiarize them with the furnace's operation and maintenance requirements.

- Troubleshooting assistance to address any technical issues that may arise during operation.

- Regular maintenance and servicing plans to keep the furnace in optimal working condition.

- Upgrades and modifications to enhance the performance and efficiency of the furnace.

Our dedicated team of technical experts is available to provide comprehensive support and services to maximize the efficiency and longevity of your Hot Dip Galvanizing Furnace.



Packing and Shipping:

- Product Packaging:

The Hot Dip Galvanizing Furnace is carefully packaged in a sturdy wooden crate to ensure safe transportation and delivery. The furnace is securely cushioned and protected to prevent any damage during transit.

- Shipping Information:

Once the order is confirmed, the Hot Dip Galvanizing Furnace will be shipped via a reputable freight carrier. Customers will receive a tracking number to monitor the shipment's progress. Delivery times may vary depending on the destination.



FAQ:

Q: What is the brand name of this galvanizing furnace?

A: The brand name of this galvanizing furnace is BEIHAI GALVANIZING.

Q: What is the model number of this galvanizing furnace?

A: The model number of this galvanizing furnace is BH001.

Q: Where is this galvanizing furnace manufactured?

A: This galvanizing furnace is manufactured in CHINA.

Q: What are the key features of this galvanizing furnace?

A: The key features of this galvanizing furnace include high-efficiency heating elements, a temperature control system, and durable construction.

Q: Is installation assistance provided for this galvanizing furnace?

A: Yes, installation assistance is available for this galvanizing furnace to ensure proper setup and operation.
