Full-Automatic Hot Dip Galvanizing Equipment Production Line

Product Description

L Type Hot Dip Galvanizing Production Line Plant Workshop Equipment Supplier Turnkey Project One-stop Service

General Steel Products Hot Dip Galvanizing Process

• Raw Material Inspection
• Degreasing-to remove oil, impurities, etc.
• Rinsing

• Pickling-to remove rust and scale, etc.

• Rinsing-to remove some iron salts, oxides, and other dirt

• Fluxing-to active and wet steel surface

• Drying-to avoid zinc splash

• Galvanizing-to protect the steel parts

• Cooling-to prevent ash burning

• Passivation-to avoid white rust

Business Scope

• At present, we have the comprehensive capacity of the following: the design, manufacture, installation, commissioning and training of the hot dip galvanizing lines and the improvement of old galvanizing plants.
• We can also offer galvanizing technology support besides equipment.

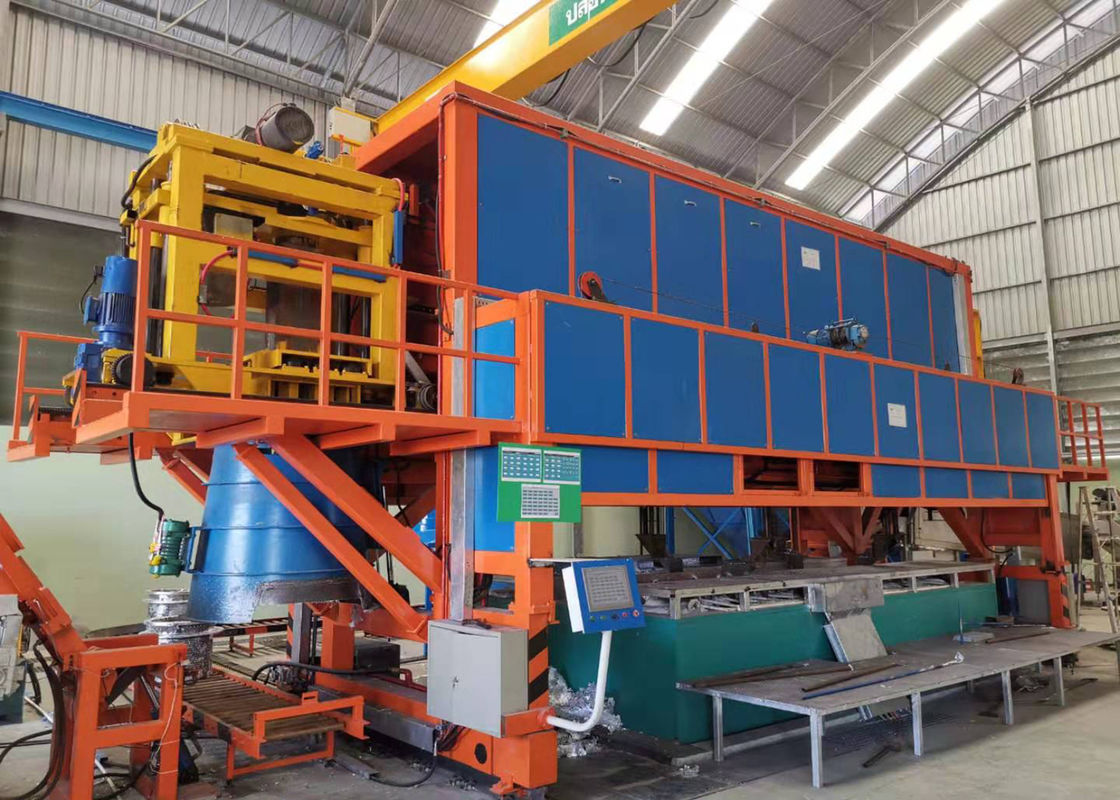

Full-Automatic Hot Dip Galvanizing Equipment

Full-automatic hot-dip galvanizing equipment adopts middle rail screw assembly type. The layout of the production line is called straight-line Gantry type, which the operating walkway is located on the side of the line body. A pedal is arranged on the operation side to facilitate the maintenance and operation of the drainage pipeline. On the non-operating side, ventilation system, bridge crane running line, other auxiliary equipment can be placed. According to the requirements of the geometry size and output of the galvanized workpiece, the length, width and depth of the zinc kettle and the material of the zinc kettle, the selection of high-temperature resistance castable cast only once. Equipment selection adopts general products, the selected products should be advanced technology, quality assurance, stable and reliable performance, high work efficiency, convenient management, less maintenance workload, moderate price and good after-sales service products.

Advantages

Professional designer and manufacture of galvanizing lines.

1.Environmental friendly

2.Efficient

3.Energy saving

      If our products interest you, please contact us.

      Meanwhile, please tell us the following information.

• Materials to be galvanized

• Biggest dimension or kettle size

• Maximum weight

• Maximum capacity per year

• Power source

• Fuel
